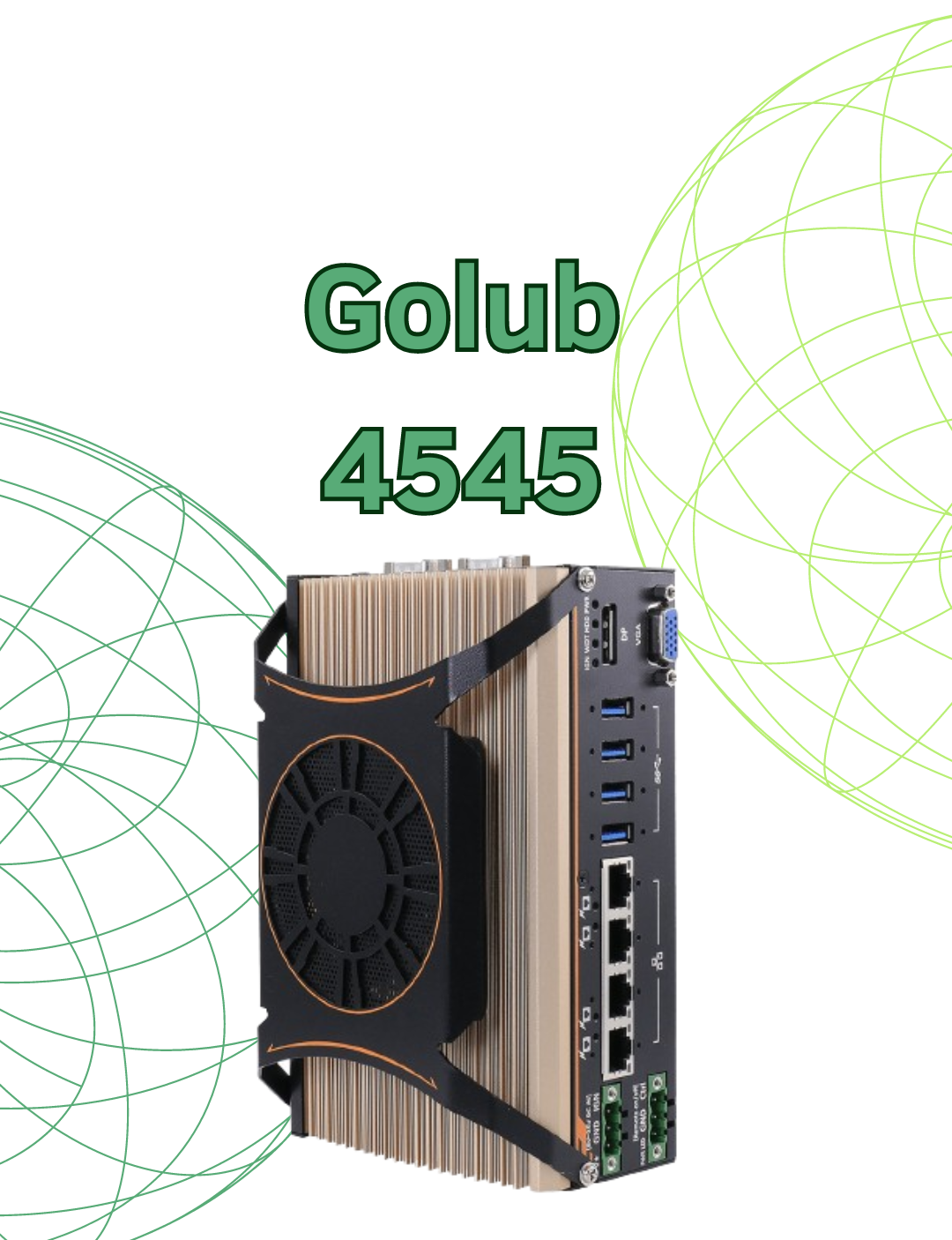

GOLUB 4545
Technical Specifications
- AMD Ryzen™ V1807B
- Up to 32 GB, DDR4
- 1x M.2
- Vega GPU with 11 compute units
- External Fan 80 x 80 mm
- Microsoft Windows® 10
- Protection class: IP20
- 81.7 x 117.9 x 175.8 mm
- 1.4 Kg
Connection Ports
- 4x IEEE 802.3at Gigabit PoE+, Intel® I350-AM4
- 4x USB 3.1 Gen1
- 1x RS-232/422/485
- 3x 3-wire RS-232 or 1x RS-422/485
- 1x 3.5 mm jack for mic-in and speaker-out
Expansion Interface
- 1x mini-PCIe
- 1x MezIO® expansion interface for MezIO® modules
Display Ports
- 1x VGA: 1920 x 1200
- 1x DisplayPort: 4096 x 2160
