Baby-LIN-3-RC

Product description

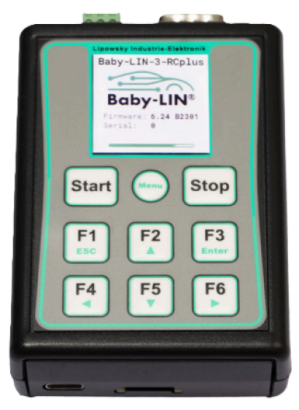

The Baby-LIN-3-RC is a compact LIN simulator that includes 9 freely configurable buttons, which are perfectly adapted to autonomous use.

  • The Baby-LIN-3-RC allows controlling LIN- and CAN- Bus equipped devices.
  • The Baby-LIN-3-RC has an integrated membrane keyboard with 9 keys, and a 1,54" SDF color display.
    Thus, it is usable as an autonomous remote control for the bus
  • The Baby-LIN-3-RC can handle LIN-Bus voltages in the range of 8-26VDC, supports SDF-V3 and is prepared for SDF-V4.

Technical Specifications

Device

Interface: USB

  • Power supply: 8-26 VDC
  • Power supply via 3 pin connector (MC 1,5/ 3-ST-3,81) or male SUB-D9 connector
  • Galvanic isolation of the communication interfaces and USB plug side
  • CPU: ARM Cortex-M7, 480 MHz
  • Memory: 1 MB RAM
  • Integrated membrane keyboard with 9 keys
  • 1,54" IPS color display with 232 x 232 pixel resolution
  • USB 2.0 high-speed (480Mbit/s) interface
  • Connection via USB-C plug

Interface: LIN

  • 1 LIN interface available
  • 1 Red/green LED (LED1) to show state of the LIN-Bus and the supply voltage
  • LIN connection via 3 pin connector (MCVR 1,5/3-ST-3,81) or SUB-D9 connector
  • LIN-Bus supply voltage 8-26 VDC
  • LIN-Bus baud rate: up to 115,200 Baud (Support of protocols outside of the LIN specification)
  • Supported LIN versions: V1.2, V1.3, ..., V2.2
  • Supported LIN related protocols: Cooling and SAE J2602
  • Maximum signal cable length for LIN-Bus: 30m
  • 1 CAN-HS interface available
  • Upgradeable to CAN-FD-Bus, voucher code required
  • CAN-Bus connection via SUB-D9 connector
  • 1 Red/green LED (LED2) to show state of the CAN-Bus
  • Internal switchable 120R termination resistor
  • Maximum signal cable length for CAN-Bus: 30m

Interface: CASE

  • Degree of protection: IP20
  • Operating temperature: -20° - + 60° Celsius.
  • Weight: 110 g
  • Case dimensions [mm]: 92 x 66 x 28 (L x W x H), external connectors not included
