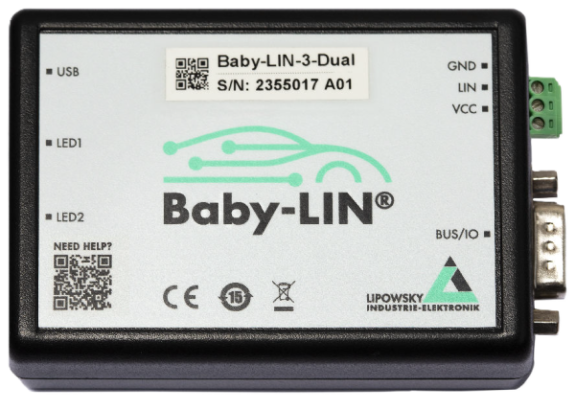

Baby-LIN-3-Dual

Product description

El Baby-LIN-3-Dual is part of the third generation of Baby-LINs that introduces new and more powerful features:

  • Is the most compact new generation system to control a LIN-Bus -CAN.
  • Control is implemented using the API functions of the Baby-LIN-DLL, known from Generation 2.
  • The power supply of the Baby-LIN-3-Dual can be supplied either from the USB or from the LIN-Bus

Technical Specifications

Device

  • Power supply: 8-26 VDC
  • Power supply via 3 pin connector (MC 1,5/ 3-ST-3,81) or male SUB-D9 connector
  • Galvanic isolation of the communication interfaces and USB plug side
  • CPU: ARM Cortex-M7, 480 MHz
  • Memory: 32 MB RAM

Interface: LIN

  • 1 LIN-Bus interface available
  • 1 Red/green LED (LED1) to show state of the LIN-Bus and the supply voltage
  • LIN-Bus connection via 3 pin connector (MCVR 1,5/3-ST-3,81) or SUB-D9 connector
  • LIN-Bus supply voltage 8-26 VDC
  • LIN-Bus baud rate: up to 115,200 Baud (Support of protocols outside of the LIN specification)
  • Supported LIN versions: V1.2, V1.3, …, V2.2
  • Supported LIN related protocols: Cooling and SAE J2602
  • Maximum signal cable length for LIN-Bus: 30m

Interface: USB

  • USB 2.0 high-speed (480Mbit/s) interface
  • Connection via USB-C plug

Interface: CASE

  • Degree of protection: IP20
  • Operating temperature: -20° – + 80° Celsius.
  • Weight: 95 g
  • Case dimensions [mm]: 92 x 66 x 28 (L x W x H), external connectors not included
